Brand Name : | DOOR |
Model Number : | DR.TD.6653 |
Certification : | CE / IS09001 |
Price : | negotiable |
Payment Terms : | T/T |
Supply Ability : | 2500 sets per month |
Delivery Time : | 5-7 working days |

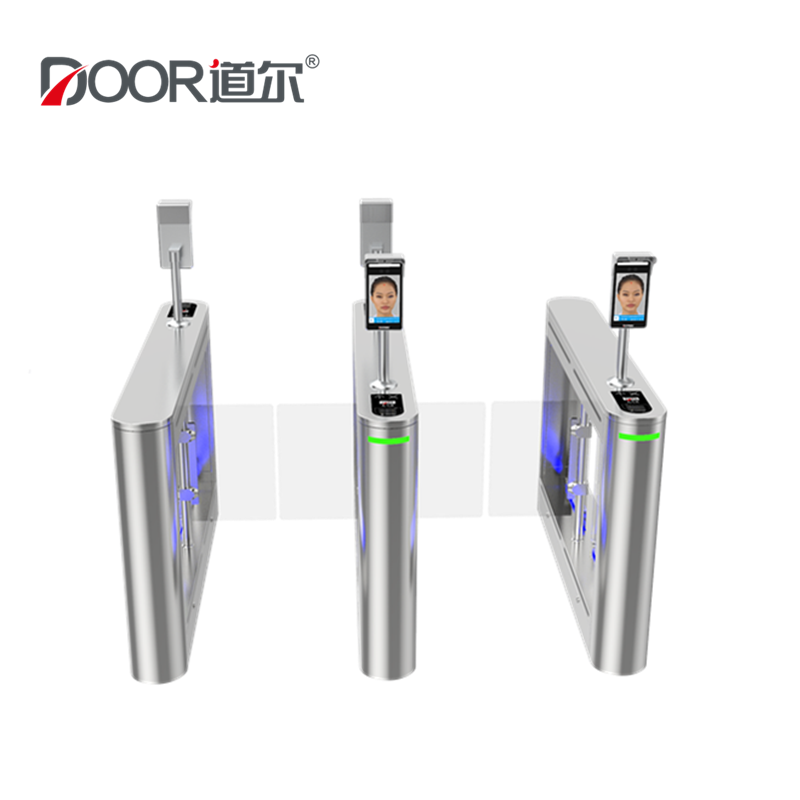

OEM Logo Printing Swing Gate Turnstile with Fever Detection for
Access Control System
Swing Turnstile Gate Description:
Swing Gate turnstile is the intelligent access management system by our company
This equipment organically integrate machinery electronics control,and all kinds of different reading and writing equipment.
Through all kinds of different reading and writing equipment,and
adopting reliable performance safety protection devices real-time
alarm system, and direction indicator interface, realizing the
access intelligent control and management by the mutual
coordination.
For COVID situation now around the world, this system or solution is ideal to any entrance control
Product Parameter:
Structure Parameter | |
Material | SUS304 brushed stainless steel, top cover 2.0mm, whole body 1.5mm |
Swing gate material | Acrylic or Stainless Steel (Optional) |
Channel Width | 550mm Customized Max: 1200mm |
Technical Parameter | |
Passing Speed | 30-35 personal/min |
Opening Speed | Adjustable <1S |
Working Temperature | -25℃-+70℃ |
Mean Cycles Between Failure | 5 million times |
IP Rating | IP54(if used outdoor, recommend to build a canopy) |
Electric Parameter | |
Voltage | AC110/AC220 50-60Hz |
Power | Single Core 35w, dual core 60W |
Driving Motor | DC brushless motor |
Method of position | Motor drive |
Communication interface | RS485 |
Input / Output signal | dry contact signal input, 6-pair infrared sensor |
Warranty Service Statement:
Our company products are guaranteed for one year, from date of
sale, providing free maintenance based on not being damaged by any
man-made.Over the period of free maintenance, faults or damages can
be maintained with additional charge. The following conditions are
not under warranty:1. Damages caused by abnormal operation,
man-made or natural disasters;2. Damages after disassembling any
portion of the machine (lines, components etc.) ;3. Damages caused
by wrong guide of non-professional technicians;4. Damages caused by
adding other functions with unauthorized modification or
installation with other equipment.
![]() |
