• Automatic Tripod Turnstile Gate With IC Card And Facial Recognition Qr Code Option
• Parameter

• Material	SUS304 brushed stainless steel,Top cover 2.0mm, Whole body 1.5mm
  Arm	Stainless Steel
  Size	L1600*W280*H1000mm
  Passage Width:	600mm
  Passing Speed	20 personal/min
  Opening Speed	1s
  Working Temperature	-15℃-+60℃
  Mean Cycles Between Failure	5 million times
  IP Rating	IP42
  Voltage	AC110V/AC220V±10% 50-60Hz
  Operating Power	40w
  Driving Motor	DC24V brushless motor
  Method of Position	Motor driving
  Communication Interface	RS485
  Input Signal	Dry contact
  Input Port	+12V Level or>100ms DC12V pulse signal

Installation:

Main Field of Application:

Office and administrative buildings
Ministries and public buildings
Banks and financial institutions
Industrial installations
Residential areas
Gymnasium
Scenic spots
Amusement parks
Public transportation

FAQ:

Q1: Do you have English version system?
A: Yes, we can provide English version system. Also you can use your own system as well.
Q2: Does the equipement include control board?
A: Yes, it is with control board. But if need our system to management, need to order extra channel management control board.
Q3: Can we connect your access control system with our system?
A: Yes, we provide SDK and Software development service with connection port.
Q4: How can we install the turnstiles/barrier gates? Is it easy?
A:Yes, it's easy to install, we have done most of the jobs before sending our products. You just need fix the gates with screws, and connect power supply cables and internet cables.Also we provide one sheet of specific manual specification in the package.
Q5: What is your company’s strength?
A: We are the top 3 manufacturer in turnstile field in China. And we are listed company with famous brand in China. We have more than 400 employees, a R&D group with 160 people, 15-person customized team, 18 offices, 9 agents and more than 20 distributors all around China.
Q6: How do you do after-sale service?
A: We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.
Q7:How about the lead time?
Normally we have raw material in stock for the hot sale models of standard products. Regular products need 5-7 working days. The customized products need 15-20 working days.
Q8: How many years of warranty?
A: We provide 1 year warranty for our products.

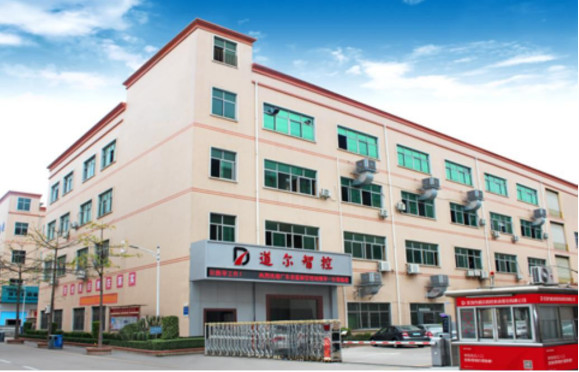

Factory Show:
