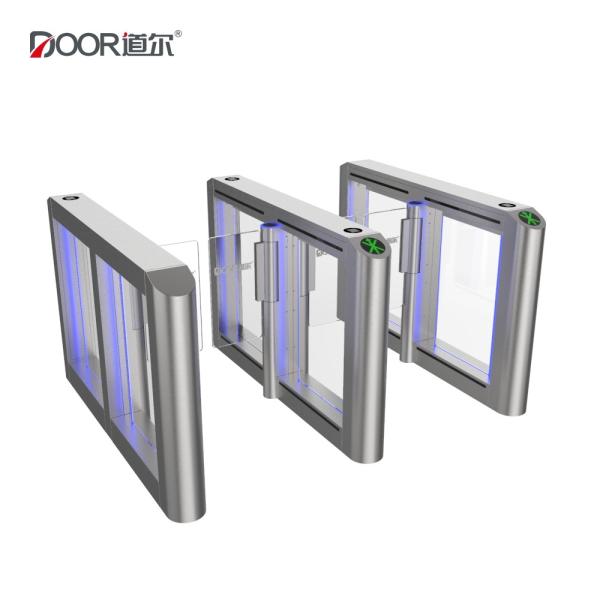

304Stainles Steel Speed Gate Turnstile Crow Control
Anti-Fingerprint LED Indicator Passage
Our Turnstile can combine with different kinds of access
readers,like: RFID Reader&Fingerprint Reader &Coin Machine&
Barcode System Tester Access Control(If you have access control
system,you can only purchase our turnstiles,if not, our
side will install the access control system for you),except access
system,also can use remote.
Speed Gate Parameter
| Material | SUS304 brushed stainless steel, top cover 2.0mm, whole body 1.5mm,
Acrylic Arm. |
|---|
| Size | L1600*W180*H1020mm |
|---|
| Passage Width | Standard 550mm, max 1100mm |
|---|
| Passing Speed | 30-50 persons/min |
|---|
| Opening Speed | Adjustable, fastest 0.3s |
|---|
| Working Temperature | -20℃-+60℃ |
|---|
| Relative Humidity | 5%-95% no condensation |
|---|
| IP Rating | IP42 |
|---|
| Voltage | AC110V/AC220V±10% 50-60Hz |
|---|
| Operating Power | Single Core 100w, dual core 200w |
|---|
| Driving Motor | Servo motor |
|---|
| Method of Position | Use the encoder to make sure the swing gate position |
|---|
| Communication Interface | RS485, TCP/IP interface |
|---|
| Input Signal | Dry contact signal or +12V level signal or DC 12V |
|---|
| Number of Sensor | 8 Pairs |
|---|
| MBCF | 8 million times |
|---|
Speed Gate Features
1. Full modernized design, fast pass speed.
2. Slim machine structure, save the installation space.
3. By using 8 pairs of military level high-performance infrared
sensors and exact algorithms, it can accurately detect the
pedestrian’s passing position to achieve the purposes such as
anti-tailgating, anti-reverse passing and anti-clamping etc.
4. Use the multiple anti-clamping designs to protect the personal
safety of passengers in maximum limit.
5. The widen lane is optional for carrying luggage and wheelchair
access
6. Equipped with the dry contact signal input interface, RS485
interface, TCP/IP interface(optional), compatible with all kinds of
access controllers.
Speed Gate Detail Showing
FAQ
Q1: Do you have English version system?
A: Yes, we can provide English version system. Also you can use
your own system as well.
Q2: Does the equipement include control board?
A: Yes, it is with control board. But if need our system to
management, need to order extra channel management control board.
Q3: Can we connect your access control system with our system?
A: Yes, we provide SDK and Software development service with
connection port.
Q4: How can we install the turnstiles/barrier gates? Is it easy?
A:Yes, it's easy to install, we have done most of the jobs before
sending our products. You just need fix the gates with
screws, and connect power supply cables and internet cables.Also we
provide one sheet of specific manual specification in the package.
Q5: What is your company’s strength?
A: We are the top 3 manufacturer in turnstile field in China. And
we are listed company with famous brand in China. We have
more than 400 employees, a R&D group with 160 people, 15-person
customized team, 18 offices, 9 agents and more than 20 distributors
all around China.
Q6: How do you do after-sale service?
A: We provide life-time technology support on line, by emails,
video, phone etc. We have engineer speaking English, convenient to
communicate with you directly.
Q7:How about the lead time?
Normally we have raw material in stock for the hot sale models of
standard products. Regular products need 5-7 working days.
The customized products need 15-20 working days.
Q8: How many years of warranty?
A: We provide 2 years warranty for our products.
