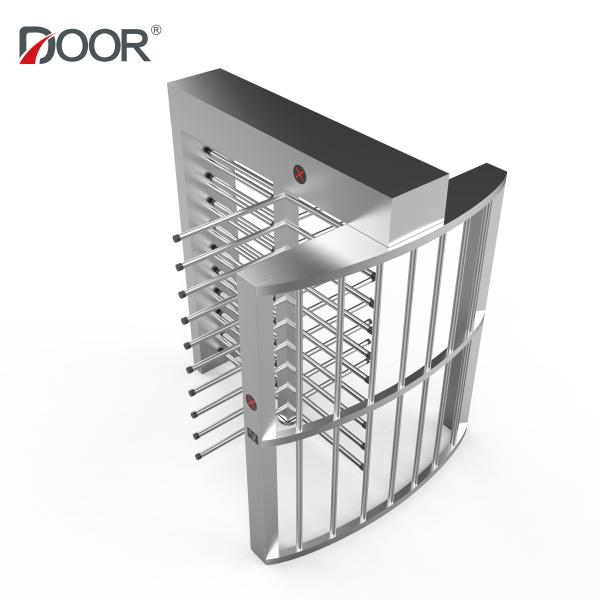

Biometric System Factory Gatelines Bi-Directional Turnstile Full
Height
Brief introduction:
This turnstile full height gate is an intelligent channel management device developed,
developed and produced by our company. By configuring different
reading and writing devices, the intelligent control and management
of channel passage can be completed.
Specification of turnstile full height gate:
| Input power | AC220V,50/60HZ |
| Motor | Solenoid |
| Work temperature | -20℃ ~ 70℃ |
| Rated power | Single core100W,double core 200W |
| Work environment | outdoor |
| Passage speed | 20-35person/min |
| Communication Interface | RS485, open/close signal(relay), dry contact |
| Humidity | ≤90%(no condensation) |
| MTBF | 5 million times |
| Pass Width | 600mm |
| Passage direction | Uni-directional/Bi-directional |
| IP level | Ip65 |
| Voltage | AC110V/AC220V±10% 50-60Hz |
Main functions and features of this turnstile full height gate:
1) It adopts electromagnet locking and photoelectric unlocking,
which has long service life, high reliability and fast response
speed.
2) The whole system runs smoothly, with low noise and low impact
force.
3) It has the function of self-checking for incoming calls, and it
automatically restores to the locked state.
4) There are a variety of working modes to choose from, you can
read the card in both directions, or you can read the card while
the other direction is prohibited, while the card is read and the
other direction is free to pass.
5) It has the function of automatic opening after power failure to
meet the special needs of users and fire safety requirements.
6) It has a unified and standard external electrical interface,
which can be connected with various access control attendance or
other control equipment, which is convenient for system
integration, and can realize remote control and management through
the management computer.
7) The accessible access control software counts the number of
people passing in the direction and presents it to the manager, so
that the manager knows the number of people passing in a certain
direction.
8) It has a clear function of indicating the direction of passage,
with intuitive LED passersby indicating whether it is possible to
pass or not to pass.
9) It has the function of reading card with memory and without
memory, and users can set it through the motherboard keyboard
according to their own needs.
10) Through software setting, the total number of personnel in the
venue can be limited to meet the special needs of some special
occasions.
11) With automatic reset function. When the passer does not pass
within the specified time (5 seconds) after reading the card, the
system will automatically cancel the passer's current pass.
Applications:
The full height turnstile is widely used in factories, gymnasiums,
construction sites, prisons, enterprises, institutions, railway
stations, bus stations, airports, and other places. Its
anti-tailing function is particularly strong. At the same time, it
is very high. People can’t cross it. The community can also use
full-height turnstiles, which are relatively stable.
