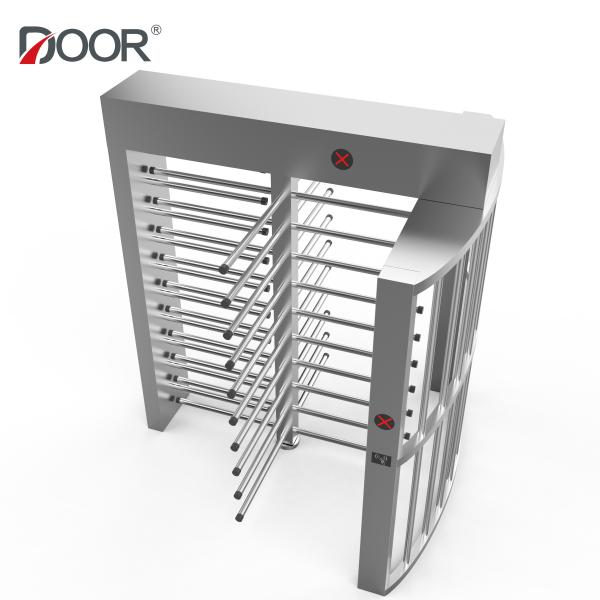

Single Channel SUS304 Stainless Steel Cabinet Tunrstile Full Heigh
Gate
Description of this security gate:
This full-height gate is an intelligent channel management device
developed, developed and produced by our company. By configuring
different reading and writing devices, the intelligent control and
management of channel passage can be completed.
The appearance of the whole product is formed by stamping stainless
steel plate, which is beautiful in appearance, rust-proof and
durable, and the system adopts standard electrical interface, which
can easily integrate barcode card, ID card, IC card and other
reading and writing equipment on this equipment, so as to provide
The entry and exit personnel provide an orderly and civilized way
of passing, and can prevent illegal entry and exit. At the same
time, in order to meet the requirements of the fire escape, in an
emergency, the power will be cut off and the personnel will be
evacuated.
Specification:
| Input power | AC220V,50/60HZ |
| Motor | Solenoid |
| Work temperature | -20℃ ~ 70℃ |
| Rated power | Single core100W,double core 200W |
| Work environment | outdoor |
| Passage speed | 20-35person/min |
| Communication Interface | RS485, open/close signal(relay), dry contact |
| Humidity | ≤90%(no condensation) |
| MTBF | 5 million times |
| Pass Width | 600mm |
| Passage direction | Uni-directional/Bi-directional |
| IP level | Ip65 |
| Voltage | AC110V/AC220V±10% 50-60Hz |
Applications of full height turnstiles:
Full height turnstile is suitable for unattended and very
high-security occasions, as well as some outdoor occasions with a
poor environment.
The full height turnstile is widely used in factories, gymnasiums,
construction sites, prisons, enterprises, institutions, railway
stations, bus stations, airports, and other places. Its
anti-tailing function is particularly strong. At the same time, it
is very high. People can’t cross it. The community can also use
full-height turnstiles, which are relatively stable.
Project Case:
