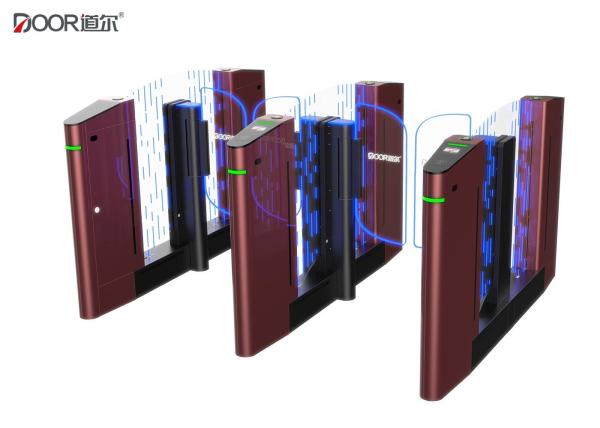

New speed gate turnstile release for high-end market with high
quality servo moto
Device Parameter:
Material: SUS304 brushed stainless steel,
top cover 2.0mm, whole body 1.5mm, Acrylic Arm
Size: L1600*W160*H1030mm
| Passage Width | standard 550mm, max 1100mm |
| Passing Speed | 30-50personal/min |
| Opening Speed | Adjustable, fastest 0.2s |
| Working Temperature | -20℃-+80℃ |
| Mean Cycles Between Failure | >8 million times |
| IP Rating | IP42 |
1.Voltage: AC110V/AC220V±10% 50-60Hz
2.Operating Power: Single Core 100w, dual core 200w
3.Driving Motor: Servo motor
4.Method of Position: Use the encoder to make sure the swing gate
position
5.Communication Interface: RS485, TCP/IP interface
6.Input Signal: dry contact signal or +12V level signal or DC 12V
7.pulse signal with width of more than 100ms, driving current
>10mA
8.Number of Sensor: 8 groups
Main Feature:
1.Multiple color option(Champagne gold + black, Gray + black,
Red wine+ black)
2.Using Highlight three colors(Blue green red) LED light design,
beautiful appearance, elegant and eye-catching, guided access
more safe and convenient
3.Multiple working modes. Users can according to their needs,
through the built-in LCD debug screen, set working mode, easy
to operate
4.Triple anti-pinch feature. infrared anti-pinch+mechanical anti
pinch+current detection anti-pinch. avoid the phenomenon of
pinching the people and the object
FAQ:
Q1: Do you have English version system?
A: Yes, we can provide English version system. Also you can use
your own system as well.
Q2: Does the equipement include control board?
A: Yes, it is with control board. But if need our system to
management, need to order extra channel management control board.
Q3: Can we connect your access control system with our system?
A: Yes, we provide SDK and Software development service with
connection port.
Q4: How can we install the turnstiles/barrier gates? Is it easy?
A:Yes, it's easy to install, we have done most of the jobs before
sending our products. You just need fix the gates with screws, and
connect power supply cables and internet cables.Also we provide one
sheet of specific manual specification in the package.
Q5: What is your company’s strength?
A: We are the top 3 manufacturer in turnstile field in China. And
we are listed company with famous brand in China. We have more than
400 employees, a R&D group with 160 people, 15-person
customized team, 18 offices, 9 agents and more than 20 distributors
all around China.
Q6: How do you do after-sale service?
A: We provide life-time technology support on line, by emails,
video, phone etc. We have engineer speaking English, convenient to
communicate with you directly.
Q7. How about the lead time?
Normally we have raw material in stock for the hot sale models of
standard products. Regular products need 5-7 working days. The customized products
need 15-20 working days.
Factory Show:
Company Introduction:
Shenzhen Door Intelligent Control Technology Co.,Ltd. (Stock Code
832966) is a high-tech
enterprise in the field of intelligent access control based on
cloud computing, which located in
Longhua District, Shenzhen. The company has more than 400
employees, including 200 R&D
and technical personnel. Door has already achieved National
High-Tech Enterprise Certification,
Double Soft Enterprise Certification, ISO9000 International Quality
System Certification and
CE Certification. Meantime, the company has obtained over 60
invention patents and national
software copyright with registered capital of CNY 100.06 million.
