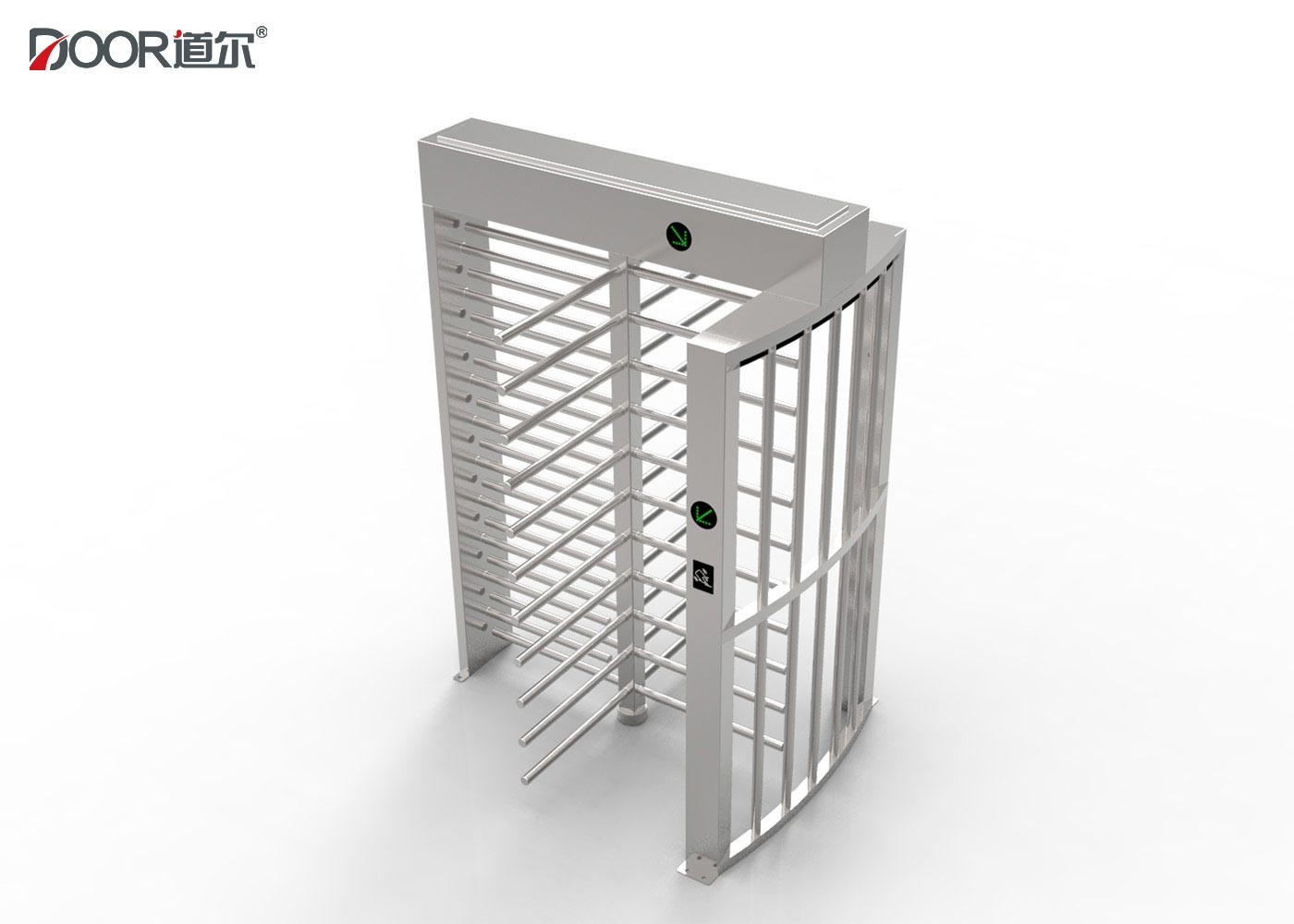

Full height turnstile gate access control system single turnstile
304 stainless steel
Parameter
Structure Parameter
Material: SUS304 brushed stainless steel,
top cover 2.0mm, whole body 1.5mm
Arm: Stainless steel
Size: L1580*W1180*H2310mm
Technical Parameter
| Passage Width | Max 650mm |
| Passing Speed | 20-35personal/min |
| Working Temperature | -25℃-+70℃ |
| Mean Cycles Between Failure | 5 million times |
| IP Rating | IP65 |
Electric Parameter
Voltage: AC110V/AC220V±10% 50-60Hz
Driving Motor: DC Brushless motor
Method of Position: Motor driving
Communication interface:RS485
Input/Output signal: dry contact
Product Dimension
Warranty Service Statement
Our company products are guaranteed for one year, from date of
sale, providing free maintenance based on not being damaged by any
man-made.
- During the warranty period, all faults caused by the product itself
can be maintained for free. Please carry the filled warranty card
and the purchase invoice to the authorized service centers across
the country or return the machine to our company for free repair.
- Within the period of free maintenance, faults or damages caused by
man-made or natural disasters can be maintained with additional
charge.
- Over the period of free maintenance, faults or damages can be
maintained with additional charge. The following conditions are not
under warranty:1Damages caused by abnormal operation, man-made or
natural disasters;2. Damages after disassembling any portion of the
machine (lines, components etc.) ;3. Damages caused by wrong guide
of non-professional technicians;4. Damages caused by adding other
functions with unauthorized modification or installation with other
equipment.
