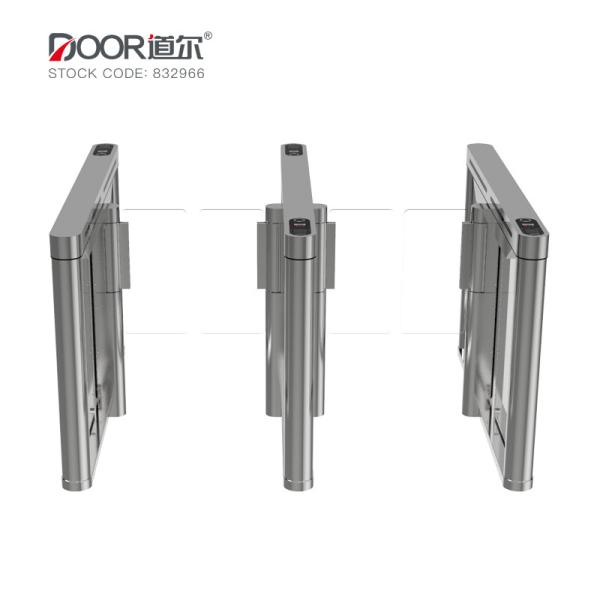

GYM Fitness Center VIP Member Access Control System Rfid QR code
Face Recognition Speed Gate Turnstile
This speed gate have a wide range of applications. Since pedestrian
turnstile gates are used to control people traffic flow, for
entrance security, and for identification purposes. The gates can really be used
anywhere. These turnstiles are most often used in high-traffic
transportation hubs like subway systems, train stations, airports,
and bus terminals. Also They are used at high-end buildings,
offices, gyms, football stadium, etc. They can even be fitted with
card readers for completely autonomous operation, as well as QR code readers,
face readers and fingerprint readers. DOOR can provide a wide range
of integration with these readers.
Device Parameter:
Material: SUS304 brushed stainless steel,
top cover 2.0mm, whole body 1.5mm, Acrylic Arm
Size: L1600*W160*H1030mm
| Passage Width | standard 550mm, max 1100mm |
| Passing Speed | 35-40 personal/min |
| Opening Speed | Adjustable, fastest 0.3s |
| Working Temperature | -25℃-+70℃ |
| Mean Cycles Between Failure | 5 million times |
| IP Rating | IP42 |
1.Voltage: AC110V/AC220V±10% 50-60Hz
2.Operating Power: Single Core 100w, dual core 200w
3.Driving Motor: Servo motor
4.Method of Position: Use the encoder to make sure the swing gate
position
5.Communication Interface: RS485, TCP/IP interface
6.Input Signal: dry contact signal or +12V level signal or DC 12V
7.pulse signal with width of more than 100ms, driving current
>10mA
8.Number of Sensor: 8 groups
This speed gate turnstile project cases:
FAQ:
- What would you do after the warranty?
We provide 12-month warranty, some of high products are with 24
months warranty. If out of warranty, we will provide free lifetime
online services, and help to replace accessories.
- What’s your capacity of your factory?
Yearly capacity:12,000units for pedestrian turnstile gate,
20,000units for parking devices.
- What are your optional list for your products?
Wireless control for pedestrian turnstiles, housing color changing,
size changing, material SUS316 available, logo printing, add
photocell quantity, etc.
- How can we be your exclusive distributor?
To be our exclusive distributor, firstly you need to have your
sales and technical team; Secondly, industry experience is
required.
