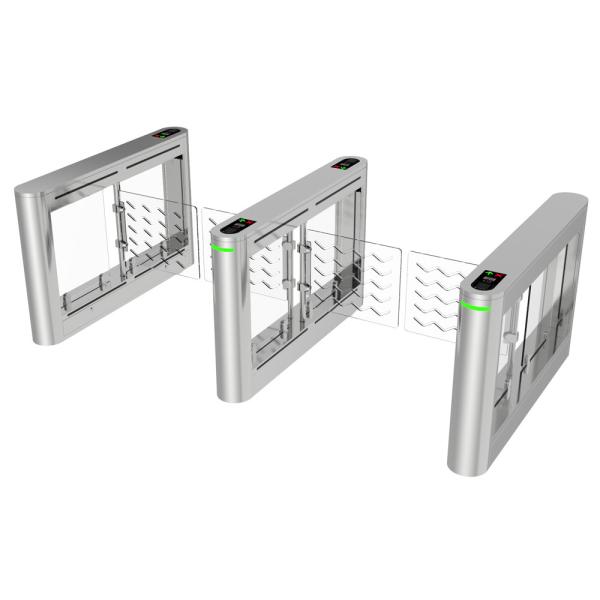

Manufacturing Ip54 Low Noise 304 Stainless Steel Pedestrian
Security Swing Turnstile Gates
Product Description
1. With normally closed mode and peak traffic mode, the normally
closed mode is divided into two
modes: normally closed locking and normally closed non-locking;
2. With memory opening, delay closing and overtime closing
functions; the number of passers-by
counting function;
3. With zero self-check function, it is convenient for users to
maintain and use;
4.The chassis panel provides a swipe card or QR code installation
area, and a face recognition
installation position is reserved;
5.Power-off free passage, in line with fire protection
requirements; provide power-on self-check
function;
Product Features
- Person - vehicle seperated with safety design concept
- Brushless DC motor, encoder positioning
- Mobile APP debugging (optional)
- Slim body (only 125mm)
- Only single movement
Product Parameter:
| Structure Parameter |
| Material | SUS304 brushed stainless steel, top cover 2.0mm, whole body 1.5mm |
| Swing gate material | Acrylic |
| Channel Width | Standard 600mm, max 1100mm |
| Technical Parameter |
| Passing Speed | 30-35 personal/min |
| Opening Speed | Adjustable, fastest 0.2s |
| Working Temperature | -25℃-+70℃ |
| Mean Cycles Between Failure | 5 million times |
| IP Rating | IP42 |
| Electric Parameter |
| Voltage | AC110/AC220 50-60Hz |
| Output Power | Single Core 30W, dual core 60W |
| Driving Motor | DC brushless motor |
| Method of position | Use the encoder to make sure the swing gate position |
| Communication interface | RS485, TCP/IP interface |
| Input / Output signal | dry contact signal input, 6 groups infrared sensor |
Project case of this swing gate turnstile:
FAQ:
- What is the strength of your company in this industry?
- Established in 2011, having over 10-year manufacturer experience.
- Having metal sheet factory, assembly factory and office over
10,000㎡, can cover a high volume production.
- There is an over 200-person R&D team, including pedestrian
turnstiles and parking software and firmware developing,
structuring and testing person.
- Listed company, have a high and strict process of orders,
production and shipping.
- Modern machinery for production, such as Laser Cutting Machine,
Grooving, bending, welding, engraving,etc. More detailed pics can
check our factory info.
- What is your Quality Control?
We have a average 10-year experience QC team. They had a good
teamwork to check raw materials and finished products to ensure the
quality. The samples will be fully tested, and the bulk goods will
be sampled for careful inspection, and the QC staff will also
conduct inspections during the production process.
- Do you provide customization?
We have a 20-person customization team to cover our clients’
customized requirements. We also provide OEM and ODM service.
