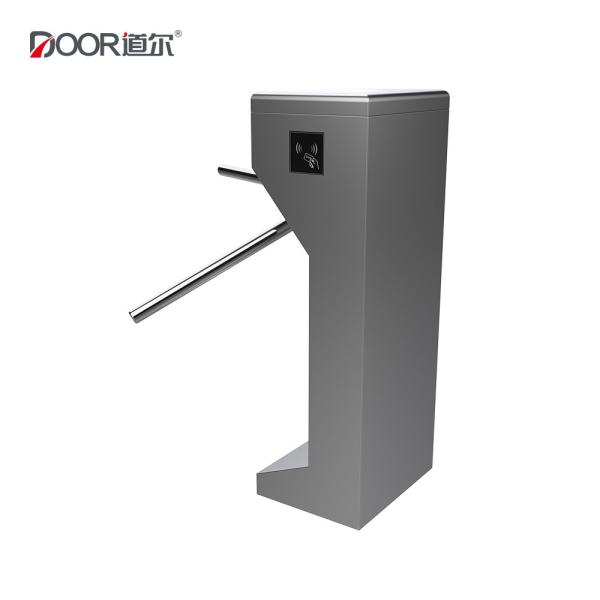

- 1.5mm thickness drop arm turnstile with a hydraulic shock
absorption device
Product Parameter:
Structure Parameter
- Material: SUS304 brushed stainless steel
- Top cover 2.0mm, whole body 1.5mm
- Arm: stainless steel
- Size: L420*W330*H9800mm
Technical Parameter
- Passage Width: 550mm
- Passing Speed: 20 personal/min
- Opening Speed: 1s
- Working Temperature: -20℃-+60℃
- Mean Cycles Between Failure: 5 million times
- IP Rating: IP55
Electric Parameter
- Voltage: AC110V/AC220V±10% 50-60Hz
- Operating Power: 30w
- Driving Motor: DC24V brushed motor
- Method of Position: motor driving
- Communication Interface: RS485
- Input Signal: dry contact
Main Field of Application:
Office and administrative buildings
Ministries and public buildings
Banks and financial institutions
Industrial installations
Residential areas
Gymnasium
Scenic spots
Amusement parks
Public transportation
FAQ:
Q1: Do you have English version system?
A: Yes, we can provide English version system. Also you can use
your own system as well.
Q2: Does the equipement include control board?
A: Yes, it is with control board. But if need our system to
management, need to order extra channel management control board.
Q3: Can we connect your access control system with our system?
A: Yes, we provide SDK and Software development service with
connection port.
Q4: What is your company’s strength?
A: We are the top 3 manufacturer in turnstile field in China. And
we are listed company with famous brand in China. We have more than
400 employees, a R&D group with 160 people, 15-person
customized team, 18 offices, 9 agents and more than 20 distributors
all around China.
Q5: How do you do after-sale service?
A: We provide life-time technology support on line, by emails,
video, phone etc. We have engineer speaking English, convenient to
communicate with you directly.
Q6:How about the lead time?
Normally we have raw material in stock for the hot sale models of
standard products. Regular products need 5-7 working days. The
customized products need 15-20 working days.
Q7: How many years of warranty?
A: We provide 1 year warranty for our products.
